Description

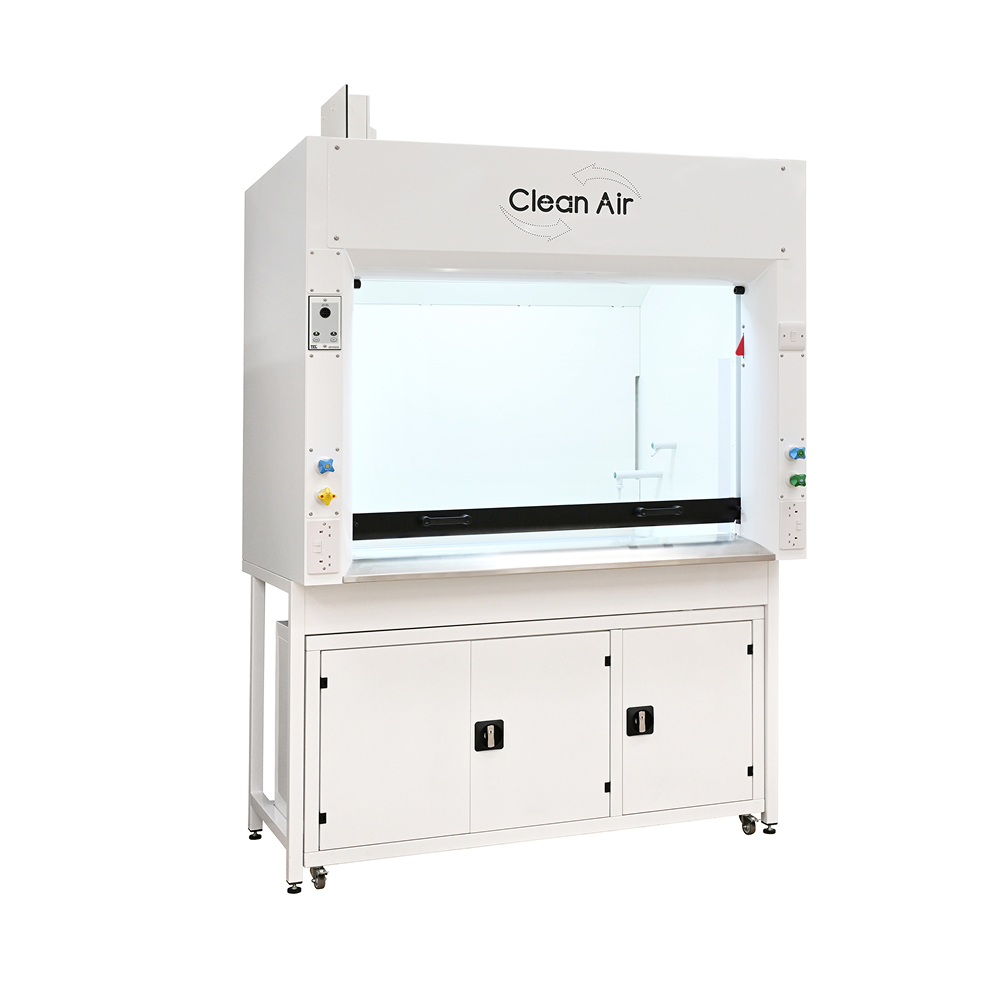

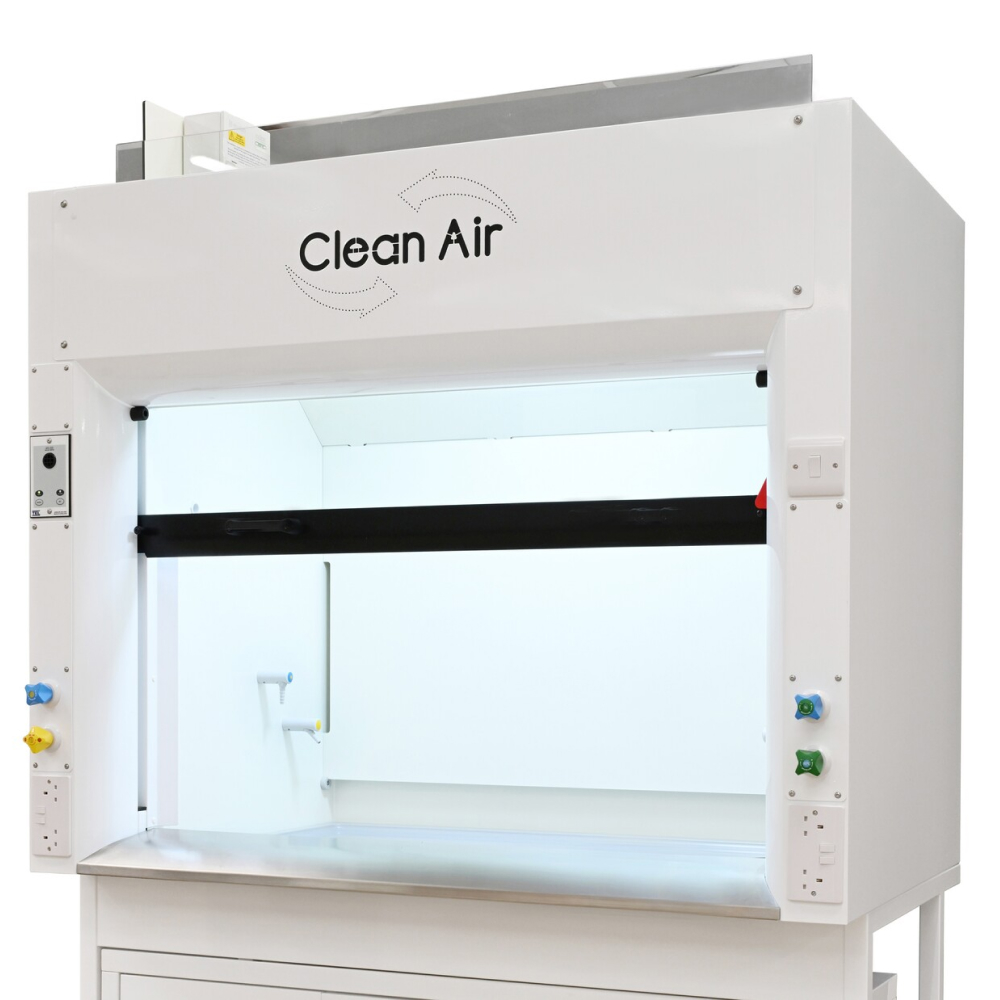

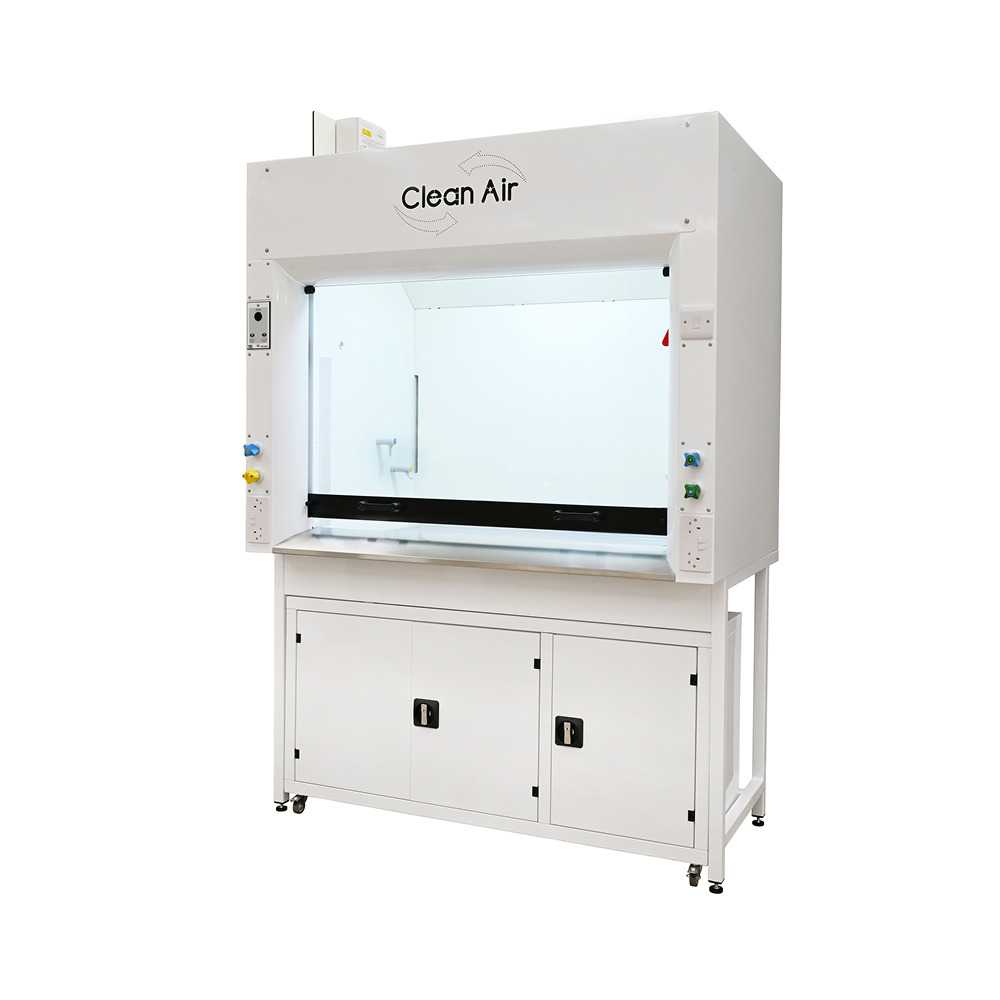

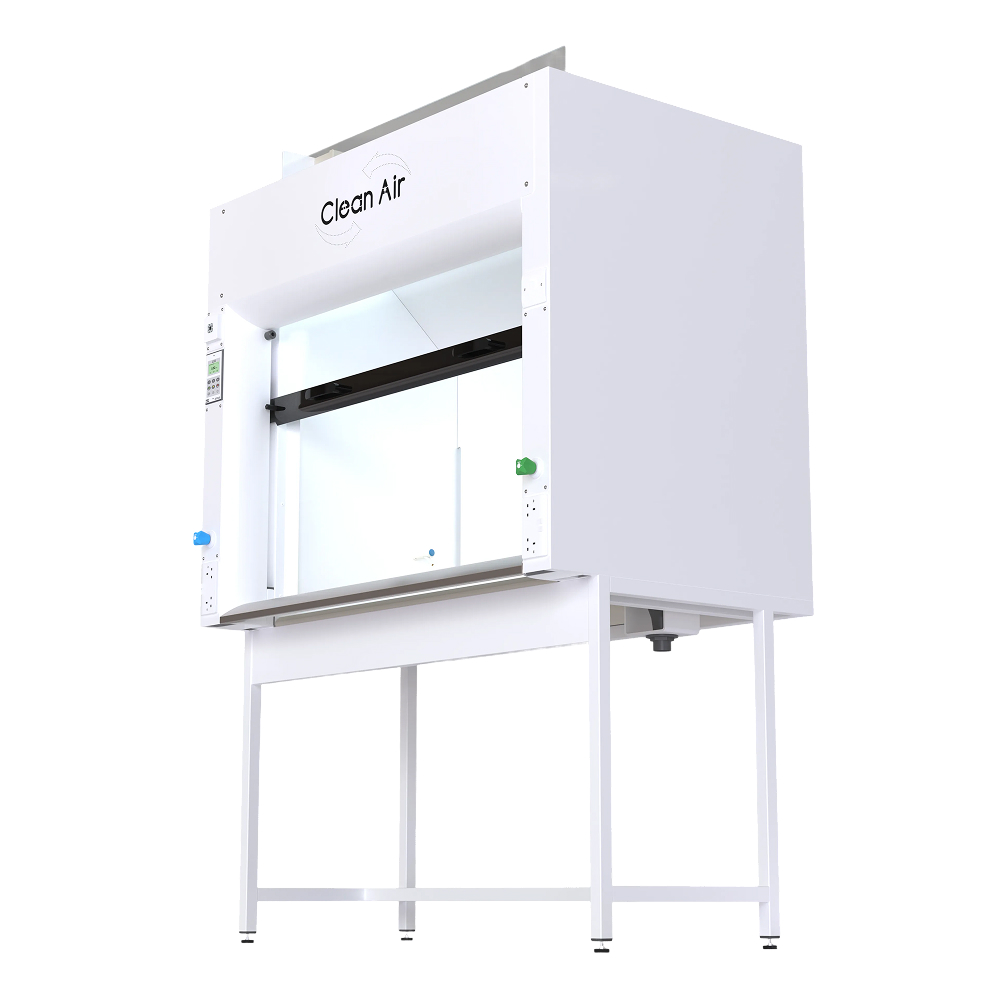

Featuring our registered design profiled inlet, the Discovery uses a smooth, sweeping curve at the sash entrance to optimise airflow and containment. This state-of-the-art enhancement minimises turbulence and improves operator protection, even at lower face velocities.
The Discovery offers a modern aesthetic while maintaining the robustness and reliability our customers trust.
Designed with flexibility in mind, the Discovery has a compact footprint and reduced overall height, making it ideal for labs with limited space or low ceilings – such as temporary buildings – without compromising performance. Its streamlined proportions also make it easy to install in existing lab layouts, whether space-constrained or open-plan
Services
Our fume cupboards can be supplied with a range of integrated Broen Uniflex service fittings, allowing you to configure essential laboratory utilities directly within the cupboard.
You can add up to 8 services in total, with a maximum of 2 of any individual service. This gives you flexibility while keeping the layout practical and easy to use.
Once your order is placed, we’ll contact you before manufacturing begins to confirm the exact service configuration, including which services are positioned on the left or right-hand side of the cupboard.
Available Services
Cold Water Service with Circular Vulcathene Drip Cup
Cold water supply with a drip cup for safely collecting and draining liquids.
Cold Water Service with Epoxy Sink (250 × 200 × 150mm)
Cold water supply with a compact chemical-resistant epoxy sink for washing and rinsing tasks.
Natural Gas Service
Natural gas outlet for Bunsen burners or laboratory heating equipment.
Compressed Air Service
Compressed air connection for pneumatic equipment and laboratory processes.
Argon Service
Argon gas supply for inert atmosphere and analytical applications.
Nitrogen Service
Nitrogen outlet suitable for a wide range of laboratory uses.
Oxygen Service
Oxygen supply for specialised laboratory applications.
Vacuum Service
Vacuum line connection for filtration, evaporation, and sample preparation.
Hydrogen Service
Hydrogen outlet commonly used in analytical and laboratory processes.
Helium Service
Helium supply connection often used in analytical instrumentation.
Carbon Dioxide Service
Carbon dioxide outlet for laboratory equipment and controlled atmosphere processes.
Need Something Different?
Speak to our friendly team, contact us today.
Add Ons
Our fume cupboards can be customised with a range of optional add-ons to enhance storage, safety, and performance.
These upgrades allow you to tailor the cupboard to your laboratory environment and workflow. As with service configurations, our team will contact you before manufacturing begins to confirm the final layout and any positioning requirements.
Available Add-Ons
Polyester Coated Steel Lockable Storage Cupboards
Durable under-bench storage cupboards finished in polyester coated steel, complete with locks for secure storage of equipment and materials.
Polypropylene Acid Storage Cupboards
Chemical-resistant polypropylene cupboards designed specifically for the safe storage of corrosive acids.
Stainless Steel Tissue Guard
A stainless steel guard designed to protect the rear baffle and airflow path from tissue or paper blockages.
Infill Panels with Bypass Grille (up to 600mm high)
Infill panels with integrated bypass grille to maintain correct airflow where cupboards are installed below ceiling height or within restricted spaces.
AFA1000/2 Alarm Upgrade (Highly Recommended)
The AFA500 is a basic control panel which has the following features as standard.
Airflow Safe - Solid Green LED Light will be displayed if the airflow is greater than the low airflow alarm point.
Airflow Fail - Solid Red LED light will be displayed if the airflow is lower than the low airflow alarm point.
Sash High - Flashing Red LED light will be displayed when the sash is raised above the max safe working opening.
Alarms - The Audible alarm will sound (Can be muted) in the Airflow Fail and the Sash High alarm condition.
The AFA1000/2 is an advanced control panel which has the following features as standard.
3 Push Buttons - Configurable as Fan On/Off, Lights On/Off, Purge On/Off, Pump On/Off.
3 Relay Inputs - Configurable as Night Setback, Alarm Disable, Sash High, External Alarm, High/Low.
3 Programmable Relay Outputs - Activated by any of the 3 Inputs, 3 Pushbuttons or any of the Alarm Conditions.
Digital Display - Showing Airflow Velocity(m/sec), Alarm Timeline & Control Pushbutton Functions.
Visual Display & Audible Alarm for Air Safe, Air Fail & Sash High.
Push Button Calibration & Configuration.
SM7 Hot Wire Sensor – To Accurately Monitor Airflow.
BACnet MS/TP & Modbus RTU is available but requires a comms adapter at an additional cost.
Upgrade to the AFA1000/2 control system featuring a digital face velocity display, fan start/stop control, and integration with building management systems (BMS).
Energy Saving VAV Upgrade
Upgrade from a Constant Air Volume (CAV) system to a Variable Air Volume (VAV) system, including the AFA1000E control panel to improve energy efficiency and airflow control. (VAV damper not included.)
Find out more
Need Something Different?
Speak to our friendly team, contact us today.
Delivery & Installation
We offer a nationwide delivery and installation service, ensuring your fume cupboard is safely delivered and professionally installed at your laboratory.
Delivery costs are calculated based on your delivery zone. Simply enter your delivery address at checkout and the correct delivery and installation price will be automatically calculated.
Our installation team are highly experienced specialists who regularly install fume cupboards in laboratories across the UK. They take pride in delivering a smooth, professional service from start to finish, ensuring your equipment is installed safely, correctly, and ready for use.
Alongside their technical expertise, our team are known for providing excellent customer service, working closely with your staff on site to make the installation process as straightforward and disruption-free as possible.
Ductwork Installation & Quotations
In many cases, a fume cupboard will also require suitable ductwork to safely extract fumes from the laboratory. Clean Air can design, manufacture, and install laboratory ductwork systems as part of your project.
If your installation requires new ductwork or modifications to existing ducting, our team can provide a tailored quotation based on your laboratory layout and extraction requirements.
Learn more about our ductwork capabilities here.
